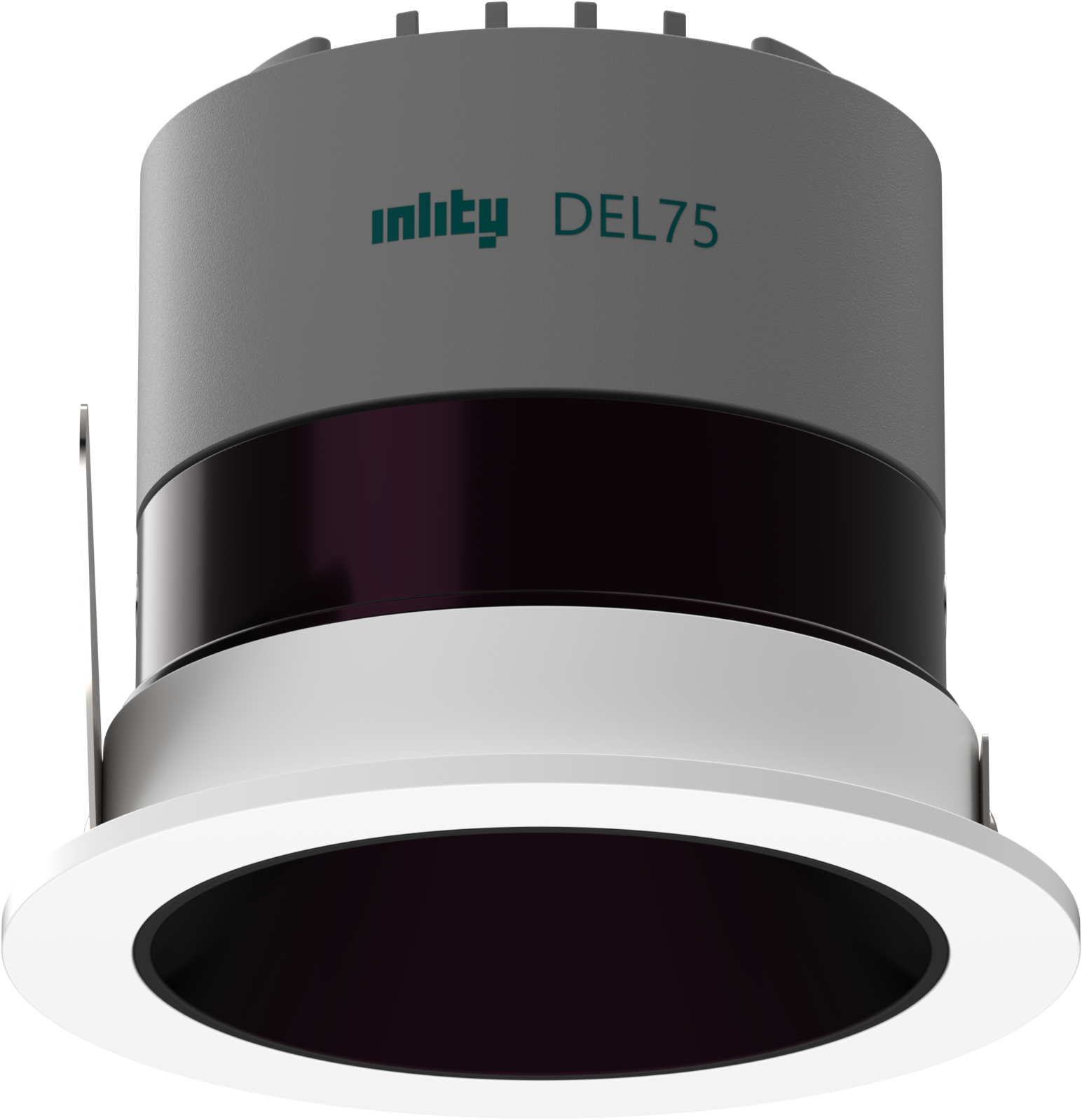

DEL 防眩射灯
DEL防眩射灯是专门为连锁酒店设计的一款灯具，着重灯具的结构简洁和灯具光学，灯具尺寸规格系列齐全，开孔覆盖55-160mm的范围，功率涵盖7-75W， 光束角有12°，24°，36°三种选择，为设计师在同一空间里灯具风格的统一提供了良好的选择
| DEL55 | DEL75 | DEL95 | DEL120 | DEL140 | DEL160 | |
|---|---|---|---|---|---|---|
| 面环直径ΦD(mm) | 63 | 84 | 105 | 130 | 150 | 175 |
| 整体高度H(mm) | 63/78 | 71/76/93 | 99/115 | 115 | 136 | 175 |
| 安装开孔Φ(mm) | 55 | 75 | 95 | 120 | 140 | 160 |
| 功率(w) | 7/10 | 7/12/18 | 20/30 | 30 | 50 | 75 |
| 光通量(lm) | 500/720 | 500/860/1260 | 1400/2100 | 2100 | 3500 | 5250 |
| 型号 / 规格 | 功率 W | 开孔 mm | 光束角 ° | 面环颜色 |
|---|---|---|---|---|
| DEL55CLG/7WP15 | 7 | 55 | 15 | |
| DEL55CLG/7WP24 | 7 | 55 | 24 | |
| DEL55CLG/7WP36 | 7 | 55 | 36 | |
| DEL55CLG/10WP15 | 10 | 55 | 15 | |
| DEL55CLG/10WP24 | 10 | 55 | 24 | |
| DEL55CLG/10WP36 | 10 | 55 | 36 | |
| DEL75CLG/7WP15 | 7 | 75 | 15 | |
| DEL75CLG/7WP24 | 7 | 75 | 24 | |
| DEL75CLG/7WP36 | 7 | 75 | 36 | |
| DEL75CLG/12BP15 | 12 | 75 | 15 | |
| DEL75CLG/12BP24 | 12 | 75 | 24 | |
| DEL75CLG/12BP36 | 12 | 75 | 36 | |
| DEL75CLG/18WP15 | 18 | 75 | 15 | |
| DEL75CLG/18WP24 | 18 | 75 | 24 | |
| DEL75CLG/18WP36 | 18 | 75 | 36 | |
| DEL95CLG/20BP15 | 20 | 95 | 15 | |
| DEL95CLG/20BP24 | 20 | 95 | 24 | |
| DEL95CLG/20BP36 | 20 | 95 | 36 | |
| DEL95CLG/30WP15 | 30 | 95 | 15 | |
| DEL95CLG/30WP24 | 30 | 95 | 24 | |
| DEL95CLG/30WP36 | 30 | 95 | 36 | |
| DEL120CLG/30WP15 | 30 | 120 | 15 | |
| DEL120CLG/30WP24 | 30 | 120 | 24 | |
| DEL120CLG/30WP36 | 30 | 120 | 36 | |
| DEL140CLG/50WP15 | 50 | 140 | 15 | |
| DEL140CLG/50WP24 | 50 | 140 | 24 | |
| DEL140CLG/50WP36 | 50 | 140 | 36 | |
| DEL160CLG/75BP15 | 75 | 160 | 15 | |
| DEL160CLG/75BP24 | 75 | 160 | 24 | |
| DEL160CLG/75BP36 | 75 | 160 | 36 |
可选配置
| 面环R | |||||||
| 遮光罩 |
| 色温 | |||||||
| 显色指数 | 90 / 95 | ||||||
| 光色 | |||||||
| 控光技术 | |
| 防眩 | |
| 配光 | |
| 技术 | DALI / 0~10V / Triac / DMX512 / Bluetooth /2.4G | ||
| 控制范围 | |||
| 电压 | AC 220V / AC 100V~240V |
